BK7 Penta Prisms
Material:BK7
Diameter Tolerance:±0.1mm
Angular Tolerance:±3'
Surface Accuracy:λ/4@632.8nm
Surface Quality:40-20
Clear Aperture:>90%
Bevelling:<0.2×45°
Coating:Custom Design
Download

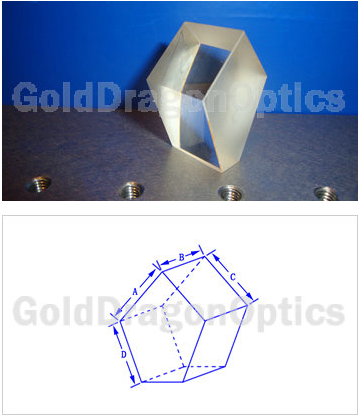

BK7 Penta Prisms
NO. A(mm) C(mm) D(mm) B(mm)
41P931 10.00 10.00 14.14 10.00
41P932 20.00 20.00 28.28 20.00
41P933 40.00 40.00 56.57 40.00
41P934 60.00 60.00 84.85 60.00
