Spherical Lenses

Material:ZnSe
Design Wavelength:10.6μm
Focal Length Tolerance:±1%
Diameter Tolerance:+0.0/-0.1mm
Thickness Tolerance:±0.2mm
Surface Accuracy:λ/2@632.8nm
Surface Quality:60-40
Centration:<3'
Clear Aperture:>80%
Bevelling:<0.2×45°
Coating:IR AR Coating 8-12μm
Download

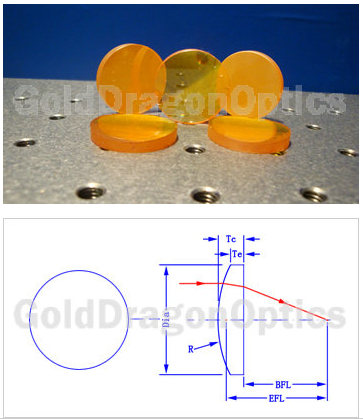

ZnSe Plano-convex Spherical Lenses
NO. EFL(mm) Dia(mm) Radius(mm) Tc(mm) Te(mm) BFL(mm)
14A7477R 15.00 12.70 21.04 3.00 2.00 13.75
14A7733R 20.00 12.70 28.05 2.70 2.00 18.88
14A7673R 40.00 12.70 56.11 2.40 2.00 39.00
14A7542R 25.40 25.40 35.63 4.30 2.00 23.61
14A7656R 50.00 25.40 70.13 4.00 2.80 48.34
14A7660R 75.00 25.40 105.20 4.00 3.20 73.34
14A7261R 100.00 25.40 140.27 4.00 3.40 98.34
14A7028R 150.00 25.40 210.40 4.00 3.60 148.34
14A7228R 200.00 25.40 280.53 4.00 3.70 198.34
14A7270R 500.00 25.40 701.33 2.10 2.00 499.13
14A7234R 750.00 25.40 1052.00 2.10 2.00 749.13
14A7753R 1000.00 25.40 1402.66 2.10 2.00 999.13
