Products
Filters

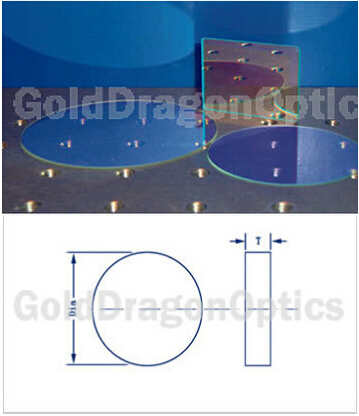

Narrow Band Filters
Material:B270
Diameter Tolerance:+0.0/-0.1mm
Thickness Tolerance:±0.1mm
Parallelism:<3'
Surface Quality:40-20
Download

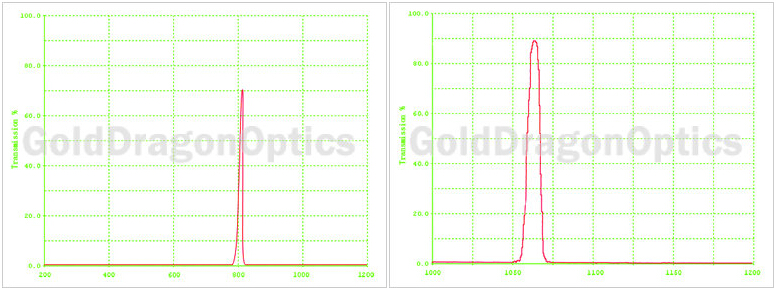

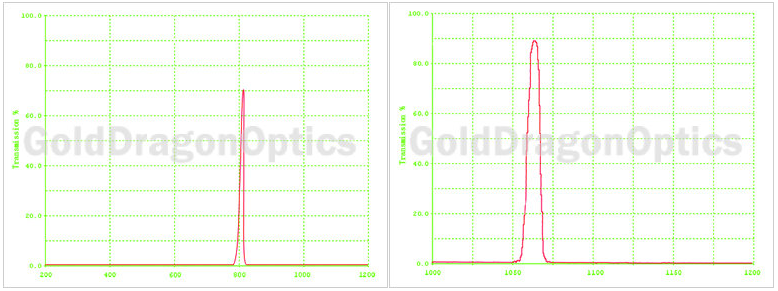

Narrow Band Filters

NO.

Dia(mm)

T(mm)

Central Wavelength

Half Bandwidth

Peak Transmittance

Cut-off Depth

Cut-off Width

NBF405

25.4

3.3

405nm

10-15nm

T>60%

T<0.01

180nm-1200nm

NBF450

25.4

3.3

450nm

10-15nm

T>75%

T<0.01

180nm-800nm

NBF510

25.4

3.3

510nm

10-15nm

T>80%

T<0.01

180nm-800nm

NBF546

25.4

3.3

546nm

10-15nm

T>80%

T<0.01

180nm-850nm

NBF587

25.4

3.3

587nm

10-15nm

T>80%

T<0.01

180nm-850nm

NBF633

25.4

3.3

633nm

10-15nm

T>80%

T<0.01

180nm-850nm

NBF660

25.4

3.3

660nm

10-15nm

T>80%

T<0.01

180nm-850nm

NBF808

25.4

3.3

808nm

10-15nm

T>80%

T<0.01

180nm-1200nm

NBF905

25.4

3.3

905nm

10-15nm

T>80%

T<0.01

180nm-1200nm

NBF975

25.4

3.3

975nm

10-15nm

T>80%

T<0.01

180nm-1200nm

NBF1064

25.4

3.3

1064nm

10-15nm

T>80%

T<0.01

180nm-1200nm

NBF1560

25.4

3.3

1560nm

10-15nm

T>80%

T<0.01

180nm-1750nm



546nmNarrow Band Filters

660nmNarrow Band Filters






808nmNarrow Band Filters

1064nmNarrow Band Filters
