Products
Optical Windows

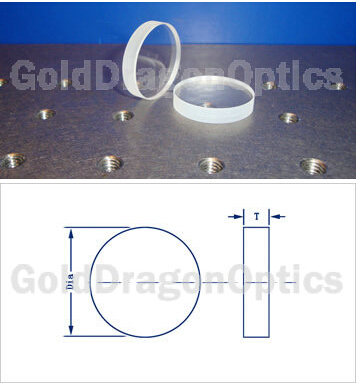

BK7 Round Windows
Material:BK7
Diameter Tolerance:+0.0/-0.1mm
Thickness Tolerance:±0.1mm
Surface Accuracy:λ/4@632.8 nm
Parallelism:<1'
Surface Quality:40-20
Clear Aperture:>90%
Bevelling:<0.2×45°
Coating:AR
A:350nm-650nm
B:350nm-650nm
C:1050nm-1580nm
A:350nm-650nm
B:350nm-650nm
C:1050nm-1580nm
 |
Download |
BK7 Round Windows
| NO. | Dia(mm) | T(mm) |
| 31W00603R | 6.00 | 3.00 |
| 31W01203R | 12.70 | 3.00 |
| 31W01205R | 12.70 | 5.00 |
| 31W01503R | 15.00 | 3.00 |
| 31W01505R | 15.00 | 5.00 |
| 31W02003R | 20.00 | 3.00 |
| 31W02005R | 20.00 | 5.00 |
| 31W02503R | 25.40 | 3.00 |
| 31W02505R | 25.40 | 5.00 |
| 31W03005R | 30.00 | 5.00 |
| 31W04008R | 40.00 | 8.00 |
| 31W05008R | 50.80 | 8.00 |
| 31W07505R | 75.00 | 5.00 |
| 31W07510R | 75.00 | 10.00 |
| NO. | Dia(mm) | T(mm) |
| 31W10012R | 100.00 | 12.00 |
