Products
Prisms

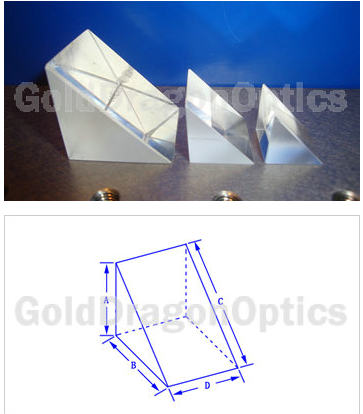

BK7 Right Angle Prisms
Material:BK7
Diameter Tolerance:±0.1mm
Angular Tolerance:±3'
Surface Accuracy:λ/10@632.8nm
Surface Quality:40-20
Clear Aperture:>90%
Bevelling:<0.2×45°
Coating:Custom Design
 |
Download |
BK7 Right Angle Prisms
| NO. | A(mm) | B(mm) | C(mm) | D(mm) |
| 41L905 | 3.00 | 3.00 | 4.24 | 3.00 |
| 41L909 | 5.00 | 5.00 | 7.07 | 5.00 |
| 41L910 | 10.00 | 10.00 | 14.14 | 10.00 |
| 41L908 | 20.00 | 20.00 | 28.28 | 20.00 |
| 41L911 | 25.00 | 25.00 | 35.35 | 25.00 |
| 41L912 | 40.00 | 40.00 | 56.57 | 40.00 |
| 41L913 | 60.00 | 60.00 | 84.85 | 60.00 |
