Spherical Lenses
CaF2 Bi-convex Spherical Lenses
Material:CaF2
Design Wavelength:587.6nm
Focal Length Tolerance:±1%
Diameter Tolerance:+0.0/-0.1mm
Thickness Tolerance:±0.1mm
Surface Accuracy:λ/4@632.8nm
Surface Quality:80-50
Centration:<3'
Clear Aperture:>80%
Bevelling:<0.2×45°
Coating:IR AR Coating 3-5μm
 |
Download |

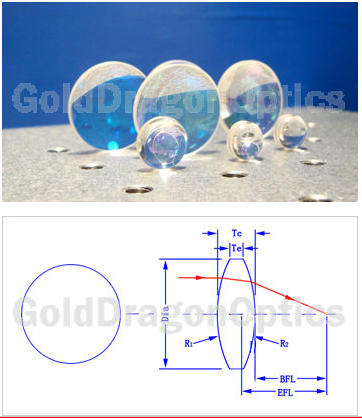

CaF2 Bi-convex Spherical Lenses
| NO. | EFL(mm) | Dia(mm) | R1=R2(mm) | Tc(mm) | Te(mm) | BFL(mm) |
| 13B5766R | 15.00 | 12.70 | 12.10 | 5.60 | 2.00 | 12.90 |
| 13B5922R | 20.00 | 12.70 | 16.64 | 4.50 | 2.00 | 18.36 |
| 13B5864R | 40.00 | 12.70 | 34.22 | 3.20 | 2.00 | 38.87 |
| 13B5774R | 25.40 | 25.40 | 20.23 | 11.00 | 2.00 | 21.22 |
| 13B5284R | 50.00 | 25.40 | 42.47 | 5.90 | 2.00 | 47.90 |
| 13B5247R | 75.00 | 25.40 | 64.39 | 4.50 | 2.00 | 73.41 |
| 13B5552R | 100.00 | 25.40 | 86.18 | 3.90 | 2.00 | 98.63 |
| 13B5454R | 200.00 | 25.40 | 173.10 | 2.90 | 2.00 | 198.99 |
