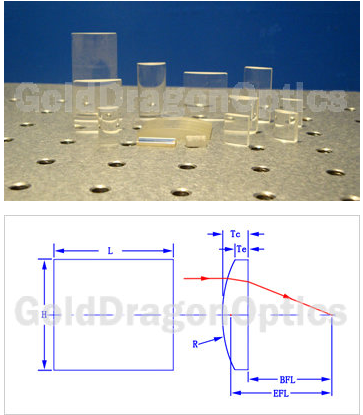

Fused Silica Plano-convex Cylindrical Lenses
Material:UV-Grade Fused Silica
Design Wavelength:587.6nm
Focal Length Tolerance:±1%
Diameter Tolerance:+0.0/-0.1mm
Thickness Tolerance:±0.2mm
Surface Accuracy:λ/2@632.8nm
Surface Quality:60-40
Centration:<3'
Clear Aperture:>90%
Bevelling:<0.2×45°
Coating:UV AR 290-370nm
 |
Download |
Fused Silica Plano-convex Cylindrical Lenses
| NO. | EFL(mm) | L(mm) | H(mm) | Radius(mm) | Tc(mm) | Te(mm) | BFL(mm) |
| 22J4359S | 8.00 | 11.00 | 7.20 | 3.67 | 4.90 | 2.00 | 4.64 |
| 22J4918S | 10.00 | 14.00 | 9.00 | 4.58 | 5.60 | 2.00 | 6.16 |
| 22J4748S | 12.70 | 15.00 | 10.00 | 5.82 | 4.80 | 2.00 | 9.41 |
| 22J4794S | 25.00 | 15.00 | 10.00 | 11.46 | 3.10 | 2.00 | 22.87 |
| 22J4862S | 25.00 | 23.00 | 15.00 | 11.46 | 4.80 | 2.00 | 21.71 |
| 22J4426S | 25.00 | 30.00 | 20.00 | 11.46 | 7.80 | 2.00 | 19.65 |
| 22J4107S | 25.40 | 35.00 | 23.00 | 11.65 | 11.60 | 2.00 | 17.45 |
| 22J4305S | 30.00 | 30.00 | 20.00 | 13.75 | 6.30 | 2.00 | 25.68 |
| 22J4878S | 75.00 | 30.00 | 20.00 | 34.38 | 3.50 | 2.00 | 72.60 |
| 22J4395S | 100.00 | 45.00 | 30.00 | 45.85 | 5.50 | 3.00 | 96.23 |
| 22J4147S | 500.00 | 45.00 | 30.00 | 229.25 | 3.50 | 3.00 | 497.60 |
