Spherical Lenses

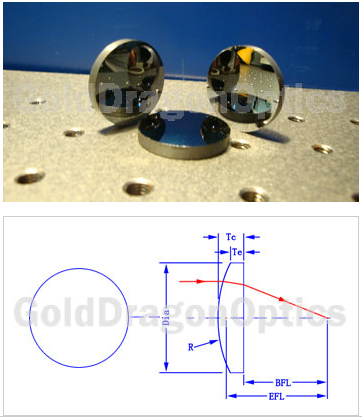

Si Plano-convex Spherical Lenses
Material:Si
Design Wavelength:4.0μm
Focal Length Tolerance:±1%
Diameter Tolerance:+0.0/-0.1mm
Thickness Tolerance:±0.2mm
Surface Accuracy:λ/2@632.8nm
Surface Quality:60-40
Centration:<3'
Clear Aperture:>80%
Bevelling:<0.2×45°
Coating:IR AR Coating 3-5μm
 |
Download |
Si Plano-convex Spherical Lenses
| NO. | EFL(mm) | Dia(mm) | Radius(mm) | Tc(mm) | Te(mm) | BFL(mm) |
| 16A8308R | 15.00 | 12.70 | 36.38 | 2.60 | 2.00 | 14.24 |
| 16A8126R | 20.00 | 12.70 | 48.51 | 2.40 | 2.00 | 19.30 |
| 16A8943R | 40.00 | 12.70 | 97.01 | 2.20 | 2.00 | 39.36 |
| 16A8281R | 25.40 | 25.40 | 61.60 | 3.30 | 2.00 | 24.44 |
| 16A8862R | 50.00 | 25.40 | 121.27 | 4.00 | 3.30 | 48.83 |
| 16A8949R | 75.00 | 25.40 | 181.90 | 4.00 | 3.60 | 73.83 |
| 16A8020R | 100.00 | 25.40 | 242.53 | 4.00 | 3.70 | 98.83 |
| 16A8336R | 150.00 | 25.40 | 363.80 | 4.00 | 3.80 | 148.83 |
| 16A8019R | 200.00 | 25.40 | 485.06 | 4.00 | 3.80 | 198.83 |
| 16A8023R | 500.00 | 25.40 | 1212.65 | 2.10 | 2.00 | 499.39 |
| 16A8599R | 750.00 | 25.40 | 1818.98 | 2.00 | 2.00 | 749.42 |
| 16A8810R | 1000.00 | 25.40 | 2425.30 | 2.00 | 2.00 | 999.42 |
