Cylindrical Lenses

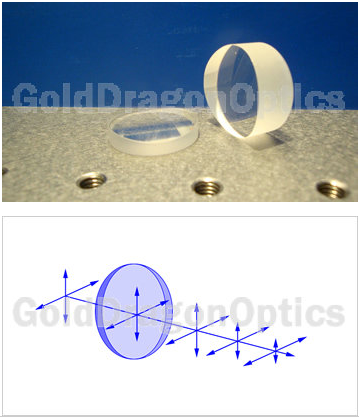

Fused Silica Round Plano-convex Cylindrical Lenses
Material:UV-Grade Fused Silica
Design Wavelength:587.6nm
Focal Length Tolerance:±1%
Diameter Tolerance:+0.0/-0.1mm
Thickness Tolerance:±0.2mm
Surface Accuracy:λ/2@632.8nm
Surface Quality:60-40
Centration:<3'
Clear Aperture:>90%
Bevelling:<0.2×45°
Coating:UV AR 290-370nm
 |
Download |
Fused Silica Round Plano-convex Cylindrical Lenses
| NO. | EFL(mm) | Dia(mm) | Radius(mm) | Tc(mm) | Te(mm) | BFL(mm) |
| 22J4305RM | 30.00 | 25.40 | 13.75 | 10.5 | 2.00 | 22.80 |
| 22J4878RM | 75.00 | 25.40 | 34.39 | 4.4 | 2.00 | 71.98 |
| 22J4395RM | 100.00 | 25.40 | 45.85 | 4.8 | 3.00 | 96.71 |
| 22J4147RM | 500.00 | 25.40 | 229.25 | 3.4 | 3.00 | 497.67 |
