Cylindrical Lenses
Rod Lenses
Material:BK7
Diameter Tolerance:±0.01mm
Surface Accuracy:Free
Surface Quality:60-40
Sphericity:0.005mm
Clear Aperture:>90%
Bevelling:<0.2×45°
Coating:None
 |
Download |

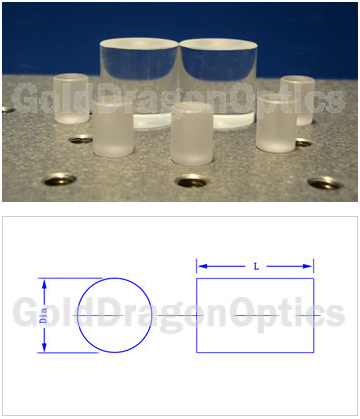

Rod Lenses
| NO. | Dia(mm) | L(mm) |
| 21H0102R | 1.00 | 2.00 |
| 21H0204R | 2.00 | 4.00 |
| 21H0306R | 3.00 | 6.00 |
| 21H0310R | 3.00 | 10.00 |
| 21H0408R | 4.00 | 8.00 |
| 21H0510R | 5.00 | 10.00 |
| 21H0515R | 5.00 | 15.00 |
| 21H0520R | 5.00 | 20.00 |
| 21H0610R | 6.00 | 10.00 |
| 21H0615R | 6.00 | 15.00 |
| 21H0620R | 6.00 | 20.00 |
| 21H0710R | 7.00 | 10.00 |
| 21H0715R | 7.00 | 15.00 |
| 21H0720R | 7.00 | 20.00 |
| NO. | Dia(mm) | L(mm) |
| 21H0815R | 8.00 | 15.00 |
| 21H0820R | 8.00 | 20.00 |
| 21H0915R | 9.00 | 15.00 |
| 21H0920R | 9.00 | 20.00 |
| 21H1015R | 10.00 | 15.00 |
| 21H1020R | 10.00 | 20.00 |
| 21H1515R | 15.00 | 15.00 |
| 21H1520R | 15.00 | 20.00 |
| 21H2020R | 20.00 | 20.00 |
