BK7 Square Windows
Material:BK7
Diameter Tolerance:+0.0/-0.1mm
Thickness Tolerance:±0.1mm
Surface Accuracy:λ/4@632.8 nm
Parallelism:<1'
Surface Quality:40-20
Clear Aperture:>90%
Bevelling:<0.2×45°
Coating:AR
A:350nm-650nm
B:650nm-1050nm
C:1050nm-1580nm
A:350nm-650nm
B:650nm-1050nm
C:1050nm-1580nm
 |
Download |
BK7 Square Windows

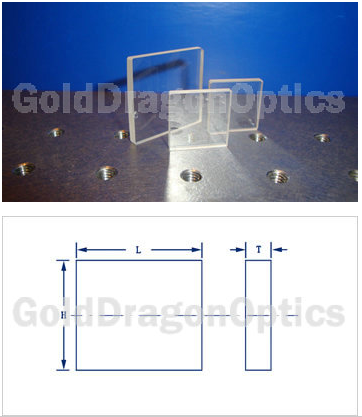

| NO. | L(mm) | H(mm) | T(mm) |
| 31W00603S | 6.00 | 6.00 | 3.00 |
| 31W01203S | 12.70 | 12.70 | 3.00 |
| 31W01205S | 12.70 | 12.70 | 5.00 |
| 31W01503S | 15.00 | 15.00 | 3.00 |
| 31W01505S | 15.00 | 15.00 | 5.00 |
| 31W02003S | 20.00 | 20.00 | 3.00 |
| 31W02005S | 20.00 | 20.00 | 5.00 |
| 31W02503S | 25.40 | 25.40 | 3.00 |
| 31W02505S | 25.40 | 25.40 | 5.00 |
| 31W03005S | 30.00 | 30.00 | 5.00 |
| 31W04008S | 40.00 | 40.00 | 8.00 |
| 31W05008S | 50.80 | 50.80 | 8.00 |
| 31W07505S | 75.00 | 75.00 | 5.00 |
| 31W07510S | 75.00 | 75.00 | 10.00 |
| NO. | L(mm) | H(mm) | T(mm) |
| 31W10012S | 100.00 | 100.00 | 12.00 |
