Products
Optical Windows

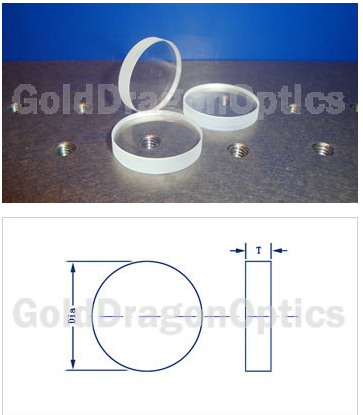

Fused Silica Round Windows
Material:UV Fused Silica
Diameter Tolerance:+0.0/-0.1mm
Thickness Tolerance:±0.1mm
Surface Accuracy:λ/4@632.8nm
Parallelism:<1'
Surface Quality:40-20
Clear Aperture:>90%
Bevelling:<0.2×45°
Coating:UV AR 290nm-370nm
 |
Download |
Fused Silica Round Windows
| NO. | Dia(mm) | T(mm) |
| 32W00603R | 6.00 | 3.00 |
| 32W01203R | 12.70 | 3.00 |
| 32W02003R | 20.00 | 3.00 |
| 32W02503R | 25.40 | 3.00 |
| 32W03005R | 30.00 | 5.00 |
| 32W04008R | 40.00 | 5.00 |
| 32W05008R | 50.80 | 5.00 |
