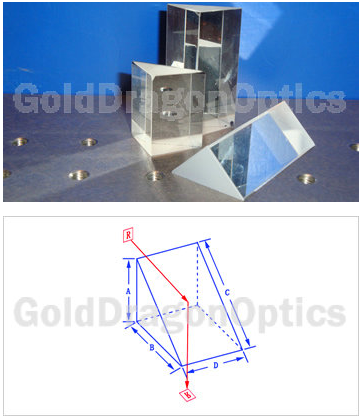

Right Angle Reflector
Material:BK7
Diameter Tolerance:+0.0/-0.1mm
Thickness Tolerance:±0.1mm
Surface Accuracy:λ/4@632.8nm
Parallelism:<3'
Surface Quality:40-20
Clear Aperture:>90%
Bevelling:<0.2×45°
Coating:As Follow
Download

UV Al Right Angle Reflector

NO.

A=B=D

C

41L05-UVAl

5.00

7.07

41L10-UVAl

10.00

14.14

41L20-UVAl

20.00

28.28

41L25-UVAl

25.00

35.35

Al Right Angle Reflector

NO.

A=B=D

C

41L05-Al

5.00

7.07

41L10-Al

10.00

14.14

41L20-Al

20.00

28.28

41L25-Al

25.00

35.35

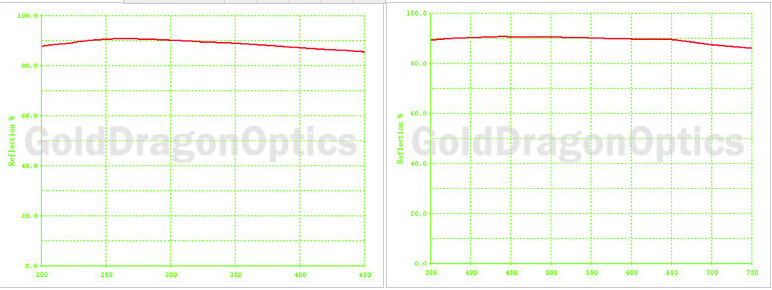

Al Metallic Coating(UV)

Al Metallic Coating(VIS)

Ag Right Angle Reflector

NO.

A=B=D

C

41L05-Ag

5.00

7.07

41L10-Ag

10.00

14.14

41L20-Ag

20.00

28.28

41L25-Ag

25.00

35.35

Au Right Angle Reflector

NO.

A=B=D

C

41L05-Au

5.00

7.07

41L10-Au

10.00

14.14

41L20-Au

20.00

28.28

41L25-Au

25.00

35.35

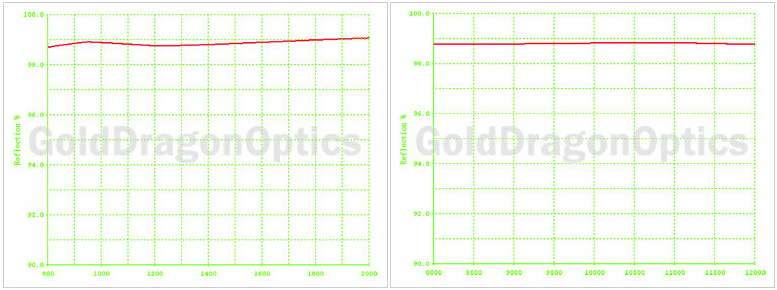

Ag Metallic Coating

Au Metallic Coating
