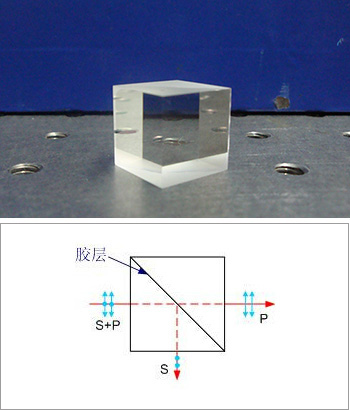

Beam Splitters
Material:H-K9L
Diameter Tolerance:+0.0/-0.2mm
Angular Tolerance:<5 arcmin
Surface Accuracy:λ/10 at 633nm
Surface Quality:40-20
Clear Aperture:16.0x16.0mm

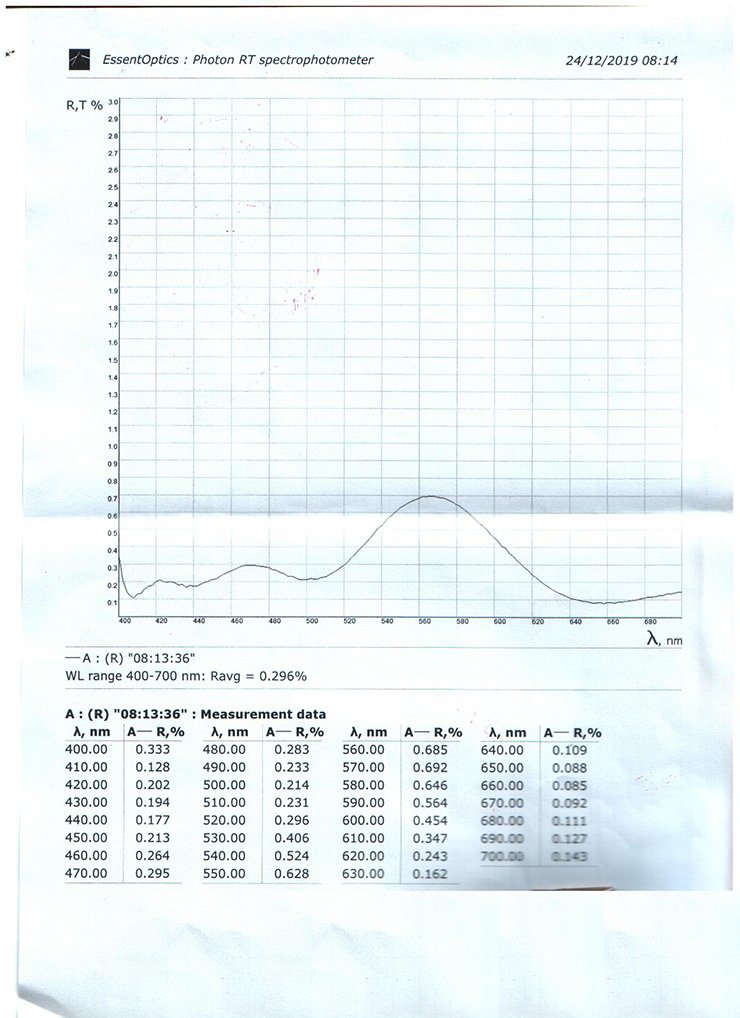

Coating:BBAR 400-700nm Ravg<0.5% 0° AOI
        A:Tabs=27±10%,Rabs=60+10/-20%,Tabs=Rabs>70%,400-550nm
        B:Tabs=27±10%,Rabs=67+5/-15%,Tabs=Rabs>85%,550-700nm
        C:丨TS-Tp丨<10% AND 丨Rs-Rp丨<10%,400-700nm,0° AOI
